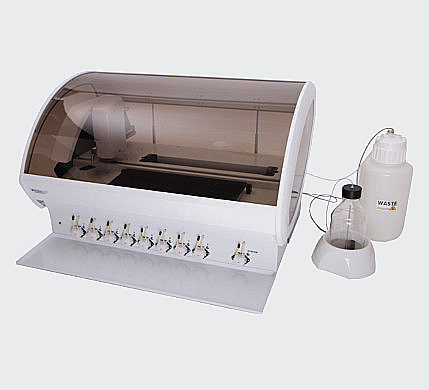

DYNABLOT Automatic

Fully automated instrument for the immunoblot and westernblot assays

Automatic sample pipetting from primary tubes

Strip image capture by camera

Drying of strips

Walk-away operation

User friendly SW for easy and comprehensible operation

Dynablot Automatic is a system which fully automates blot pro- cessing starting with samples being pipetted and finishes with camera image capture. Only insertion of samples in primary tubes and strips are required from an operator.

The instrument is fitted with reagents peristaltic pumps located at its front for easy use and handling. The pumps are capable of running in reverse. It assists the functions “Antidrop” (no drops at the end of tubing during dispensing) and “Reagents saving” (aspiration of dead volume back to reagent bottles after last dis-pensing).

The mixing of strip content during incubation is assisted by rocking the strip plate. Slow, medium or fast rocking speeds can be selected.

Used liquid media is removed by an integrated vacuum pump and then directed to a waste bottle with a level sensor.

All reagent tubing can be replaced easily.

Compact instrument dimensions (800 x 500 x 540 mm), weight (35 kg) and very quiet running are friendly to laboratory environments. The instrument power consumption is up to 50 W.

Controlled by PC (USB connection), SW language options

User friendly SW

Creating and importing of work lists, simultaneous running of varied (but compatible) assays

Saving and export of strip pictures for analysis in the customer’s SW

Monochromatic CCD camera 2592x1944 pixels Green LED illumination

Resolution about 490 DPI

The pictures are taken and saved strip by strip
